• Grille, Black
• Tires, rear, 215/85R16 E all-season (STD)
• Windshield wiper, pulse, wet arm
• Assist steps
• Tires, front, 215/85R16 E, all-season (STD)
• Glass, tinted
• Headlamp washer system
• Mirror, outside left-hand and right hand dual cab-mounted with integral convex mirror
• LED Headlamps includes integrated LED turn signal indicators
• Wheels, 16" x 6, K. steel (STD)
• Arc White
• Wheels, 16" x 6, K. steel (STD)
• Tires, rear, 215/85R16 E all-season (STD)
• Tires, front, 215/85R16 E, all-season (STD)

• Cup holders
• Cruise control, electronic, automatic
• Steering wheel, urethane
• Steering wheel, tilt and telescopic
• Floor mats

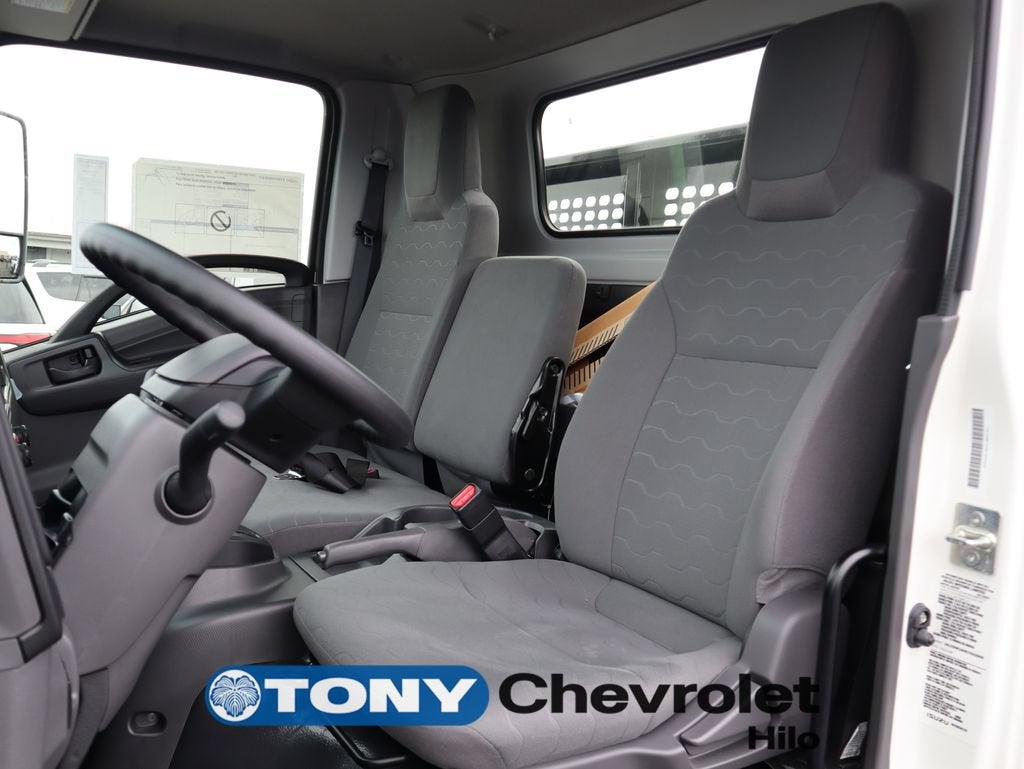

• Seat, front high back bucket driver and passenger tricoat cloth covered reclining high back driver seat with single two occupant fold down passenger seat (STD)
• Windows, power
• Seat trim, Cloth
• Storage, door pockets
• Storage, seatback pockets
• Door locks, power
• Air conditioning, single-zone electronic, integral in-dash mounted
• Rear dome and body lamp switch
• Lighting, interior dome
• Windshield washer bottle access on passenger side dash when passenger-side door is open
• Medium Ash Gray, Cloth Seat Trim
• Seat, front high back bucket driver and passenger tricoat cloth covered reclining high back driver seat with single two occupant fold down passenger seat (STD)

• Front suspension, 6,830 lbs. (3098 kg) tapered leaf, semi-elliptical steel alloy. Includes shock absorbers and stabilizer bar.
• Rear axle, 11,020 lbs. (4998 kg), full-floating with oil lubricated rear wheel-bearings
• Incomplete vehicle certification
• Drivetrain, rear-wheel drive
• GVWR, 14,500 lbs. (6577 kg)
• Exhaust, single horizontal outlet
• Front axle, 6,830 lbs. (3098 kg), reverse Elliot "I"-beam includes integral hydraulic power steering with an 18.8-20.9:1 gear ratio (Standard on 4500 HD and 4500 XD only.)
• Air cleaner, heavy-duty, 11" diameter dry paper single element. Air cleaner canister standard with air restriction gauge. Back of cab location.
• Rear Suspension, 9,880 lbs. (4481kg), tapered leaf spring with shock absorbers (Standard on 4500 HD only.)
• Exhaust brake
• Fuel tank, 30 Gallon, (113L), stainless steel includes 2 auxiliary fuel ports
• Battery, dual 750 cold-cranking amps, 12 volt, maintenance free
• Frame, ladder-type channel frame. Full C section straight frame 33.5" (85.1 cm) wide.
• Brakes, 4-wheel antilock, front and rear disc with traction control and stability control
• Vehicle Application Truck
• Emissions, Federal certification. Does NOT meet California emissions requirements - TRUCKS CANNOT BE SOLD OR REGISTERED IN CALIFORNIA.
• Wheelbase, 176" (447.0 cm)
• Alternator, 140 amps
• Rear axle, 4.56 ratio
• PIO, Fuel Tank, Additional 35 Gallon, (132L) driver-side mounted aluminum fuel tank supplements standard 30 Gallon, (113L) fuel tank for combined dual tank capacity of 65 gallon, (246.1L), (Port Installed Option)

• Preferred Equipment Group includes standard equipment

• California Restriction Acknowledgement. TRUCKS CANNOT BE SOLD OR REGISTERED IN CALIFORNIA.

• Daytime Running Lamps

• Airbags, frontal, driver and right front passenger
• PIO, Rear Vision Camera (Port Installed Option)
• PIO, Fire extinguisher and safety reflector mounting provisions (Port Installed Option)

PREFERRED EQUIPMENT GROUP

• includes standard equipment

TIRES, FRONT, 215/85R16 E, ALL-SEASON

• (STD)

TIRES, REAR, 215/85R16 E ALL-SEASON

• (STD)

SEAT, FRONT HIGH BACK BUCKET DRIVER AND PASSENGER

• tricoat cloth covered reclining high back driver seat with single two occupant fold down passenger seat (STD)

ENGINE, DIESEL 5.2L 4 CYLINDER

• 215 hp [160.3 kW] @2500 rpm
• 452 lb-ft of torque [612.8 Nm] @ 1850-2750 rpm (Governed). 16 valve
• four cycle
• chain-driven dual overhead camshaft valve train
• a cast iron cylinder block
• and a cast aluminum cylinder head. Turbocharged
• inter-cooled
• water cooled EGR
• direct injection
• electronically controlled common rail fuel system and engine cruise control. Oil level check switch and light. Engine warning system with audible warning for low oil pressure
• high coolant temperature
• and a protection system that will reduce fueling if excessive coolant temperature is detected (STD)

PIO, AUDIO SYSTEM, ENHANCED AUDIO SYSTEM

• Enhanced audio system with 7" diagonal color touchscreen
• AM/FM stereo with seek-and-scan and digital clock. Additional features include: Bluetooth® capability
• SiriusXM capable (requires separate SiriusXM tuner plus customer subscription)
• Apple CarPlay/Android Auto capable
• Navigation via Apple CarPlay/Android Auto
• and Rear Vision Camera. (Port Installed Option) (Includes (UVC) Rear Vision Camera
• PIO.)

TRANSMISSION, 6-SPEED AUTOMATIC AISIN A465 TRANSMISSION

• with fifth and sixth gear overdrive with lock up in 2nd
• 3rd
• 4th
• 5th and 6th
• PTO capability automatic torque converter lockup in stationary PTO mode. (STD)

PIO, FIRE EXTINGUISHER AND SAFETY REFLECTOR MOUNTING PROVISIONS

• (Port Installed Option)

PIO, FUEL TANK, ADDITIONAL 35 GALLON, (132L) DRIVER-SIDE MOUNTED ALUMINUM FUEL TANK

• supplements standard 30 Gallon
• (113L) fuel tank for combined dual tank capacity of 65 gallon
• (246.1L)
• (Port Installed Option)

WHEELS, 16" X 6, K. STEEL

• (STD)

CALIFORNIA RESTRICTION ACKNOWLEDGEMENT.

• TRUCKS CANNOT BE SOLD OR REGISTERED IN CALIFORNIA.

PIO, REAR VISION CAMERA

• (Port Installed Option)

• REAR AXLE

• 4.56 RATIO

  ARC WHITE

  MEDIUM ASH GRAY

• CLOTH SEAT TRIM

• DriveType
• DriveType: Rear Wheel Drive
• Fuel Economy
• City: 0
• Hwy: 0
• Combined: 0
• Fuel System
• Fuel System: Direct Injection
• Fuel Tank Capacity
• Fuel Tank Capacity: 30 gal
• Fuel Type
• Fuel Type: Diesel Fuel
• Horse Power
• Horse Power: 215
• Rear Wheel
• Rear Wheel: Dual
• Trailering Capacity
• Trailering Capacity: 0
